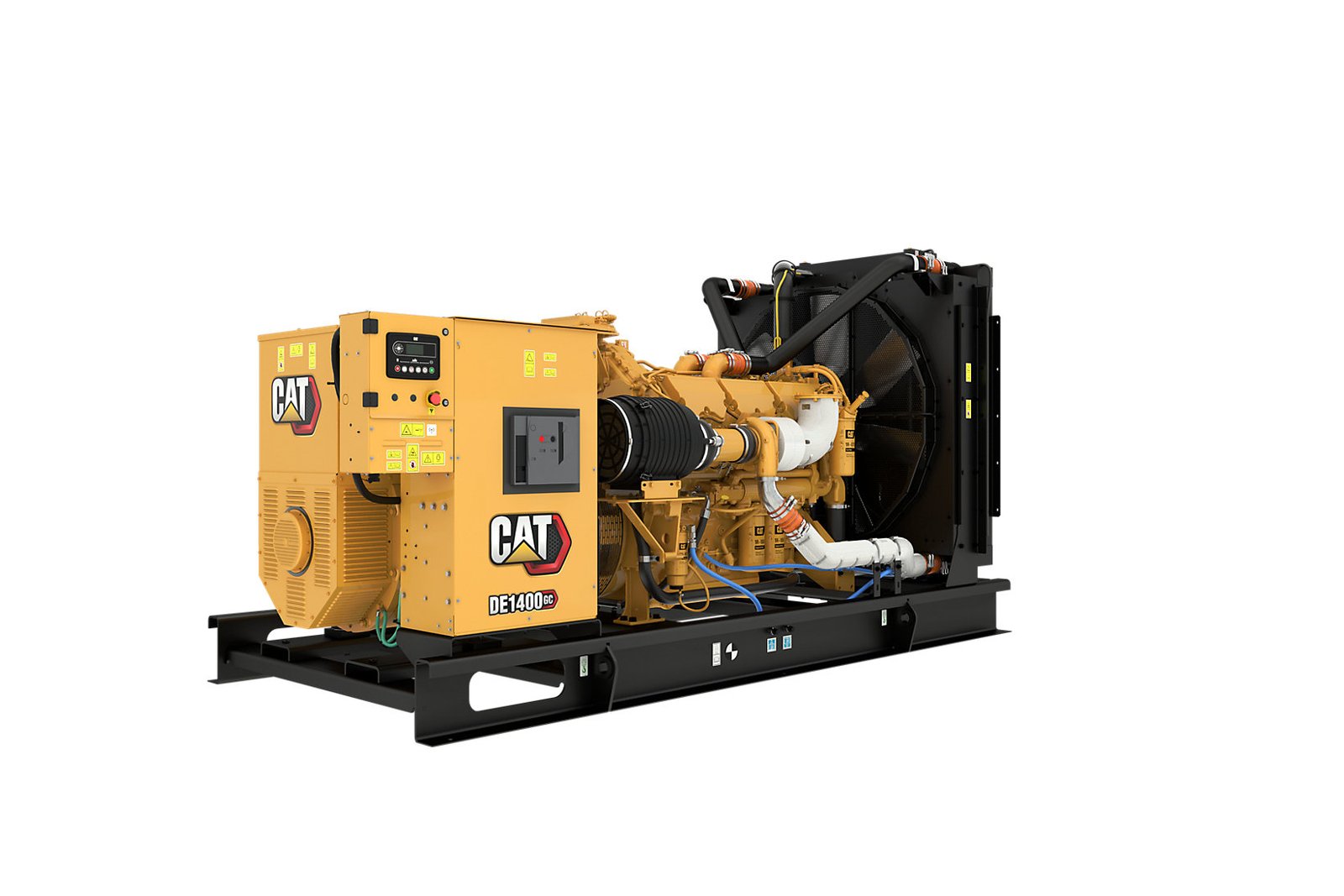

DE1400 GC Diesel Generator Sets
1400 kVA Diesel Generator Set
Reliable 1400 kVA standby power at 50 Hz, designed to meet ISO 8528-5 requirements and accept 100% rated load in one step, with low fuel consumption.
Generator Set Specifications
| Standby Rating | 1400 kVA |
| Emissions/Fuel Strategy | Low BSFC |
| Voltage | 400 - 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Mission Critical |
Definitions and Conditions
| Mission Critical | 1400 kVA |
Engine Specifications
| Engine Model | C32B TA, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | 145 mm |
| Stroke | 162 mm |
| Displacement | 32.1 l |
| Compression Ratio | 14.0:1 |
| Aspiration | TA |
| Fuel System | EUI |
| Governor Type | Adem™A4 |
Generator Set Dimensions
| Length - Minimum | 4175 mm |
| Length - Maximum | 4175 mm |
| Width - Minimum | 1856 mm |
| Width - Maximum | 1856 mm |
| Height - Minimum | 2268 mm |
| Height - Maximum | 2268 mm |
| Dry Weight - Genset (minimum) | 7436 kg |
| Dry Weight - Genset (maximum) | 7436 kg |
Control Panel
- GCCP1.3
Cooling System
- Radiator
Control Panels
- Remote monitoring software
Starting/Charging
- Jacket water heater
General
- Single element or dual element air cleaner
- Circuit breaker panel, based on regional and product configuration
