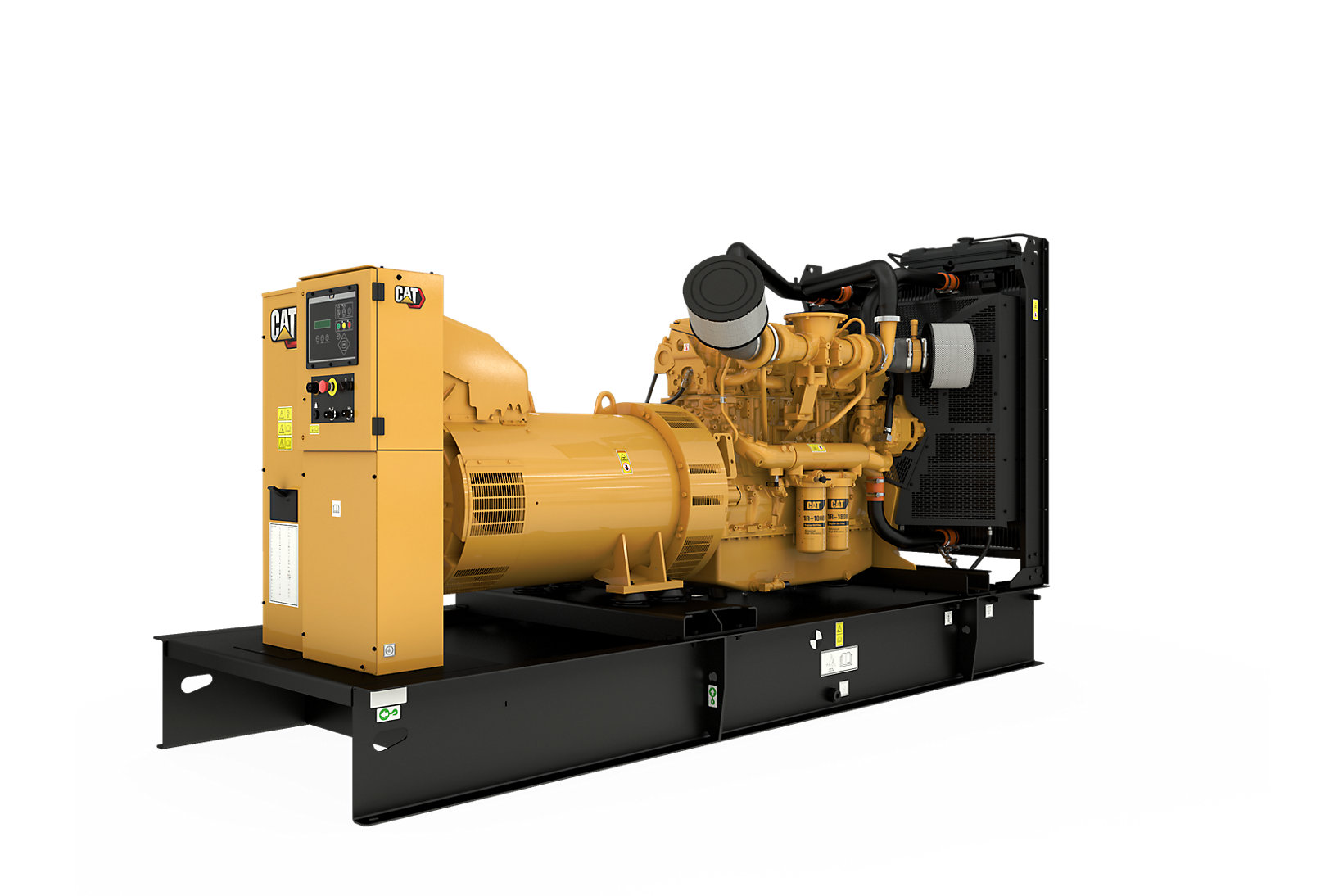

C18 (50 Hz) Diesel Generator Sets

Air Inlet System

• Turbocharger

• Light duty air cleaner

• Aftercooler core

Air Inlet

• Air cleaner

Control System

• GCCP 1.2

Exhaust

• Exhaust flange outlet

Cooling

• Coolant drain line with valve

• Caterpillar extended life coolant

• Fan drive, battery charging alternator drive

• Radiator and cooling fan with guard

Exhaust System

• Stainless steel exhaust flex gaskets, raincap and SAE exhaust flange for customer use - shipped loose

Fuel

• Secondary fuel filters

• Fuel priming pump

• Primary fuel filter with integral water separator

Fuel System

• Standard 8 hour open set fuel tank

Generator

• IP23 Protection

• Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time

• Matched to the performance and output characteristics of Cat engines

Generator and Attachments

• Segregated low voltage (AC/DC) wiring panel

• Integrated voltage regulator (IVR)

• A Frame generator - IP21 protection

• Integrated voltage regulator (IVR)

• Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre

• Power center, IP22

• Matched to the performance and output characteristics of Cat engines

Power Termination

• Busbar

Governing System

• Cat electronic governor (ADEM A4)

Control Panel

• GCCP Genset Controller

Lube System

• Lubricating oil

• Oil drain valves

Mounting

• Rubber vibration isolators

Mounting System

• Captive linear vibration isolators between base and engine-generator. includes lifting provisions and termination points for coolant and lube oil drain lines

Starting/Charging

• 24 Volt battery with rack and cables

General

• Engine and alternator pre-paint, Caterpillar yellow

Exhaust

• Industrial, residential, critical mufflers

Air Inlet System

• Dual element air cleaner

• Single element air cleaner

Circuit breakers

• 3 Pole (IEC-100% rated) Circuit breakers - Motorised

• 4 Pole (IEC-100% rated) Circuit breakers - Motorised

• Circuit breaker (IEC) Auxiliary contacts

• Padlockable circuit breaker device

• 3 Pole (IEC-100% rated) Circuit breakers - Package mounted

• 4 Pole (IEC-100% rated) Circuit breakers - Package mounted

• Power terminal strip

• Shunt trip for IEC breaker

Generator

• Anti-condensation heater

• Excitation: [ ] Permanent magnet excitation (PMG) Excited (PM) [ ] Internally Excited (IE)

• Oversize and premium generators

Power Termination

• Circuit breakers, IEC compliant

• Circuit breakers, UL listed

Control Panels

• Local & remote annunciator modules

• Load share module

• Remote monitoring software

• EMCP (4.2) (4.3) (4.4)

• Digital I/O module

Control System

• Oil temperature displays

• GCCP 1.5

• Volt free contact

• Protective devices: Earth fault relay - earth leageage Ground fault relay - Overload shutdown via breaker - Low fuel level alarm - Low fuel level shutdown - High fuel level alarm - Fuel level sensor

• Local alarm modules

• Remote annunciator module

• Local alarm horn

Cooling System

• Low coolant temperature alarm

• Radiator duct flange

Starting/Charging

• Oversize batteries

• Jacket water heater

• Battery chargers

• Heavy duty starting system

• Charging alternator

Enclosures

• Sound attenuated enclosures

Exhaust System

• Manifold and turbocharger guards

• Engine mounted muffler

• 8 and 10 inch elbow kits

• 8 and 10 inch GP flanges

• 10, 25 and 35 end in / end outmufflers

Fuel System

• Optional BS799 Compliant Integral - Dual wall fuel tank base

• Manual fuel transfer pump

• Fuel transfer system

Generator and Attachments

• LC frame generator

• Permanent magnet excitation (PMG)

• LC frame oversize generators

• Space heaters

• A Frame oversize generator

• A Frame CIP generator

• Ingress protection

• LC frame CIP generator

General

• Single or dual wall integral fuel tanks

• UL 2200 package

• Enclosures: Sound attenuated, weather protective

• EU Certificate of Conformance (CE)

• Integral & sub-base UL listed dual wall fuel tanks

• Narrow, wide or skid base

• The following options are based on regional and product configuration:

• Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007

• EEC Declaration of Conformity

• CSA Certification

• Sound attenuated, weather protective or high ambient weather protective enclosure

• Automatic transfer switches (ATS)

• Single or dual wall sub-base fuel tanks

Lube System

• Manual sump pump

Starting and Charging

• Jacket water heaters

• 5 Amp Battery charger

• Battery disconnect switch
