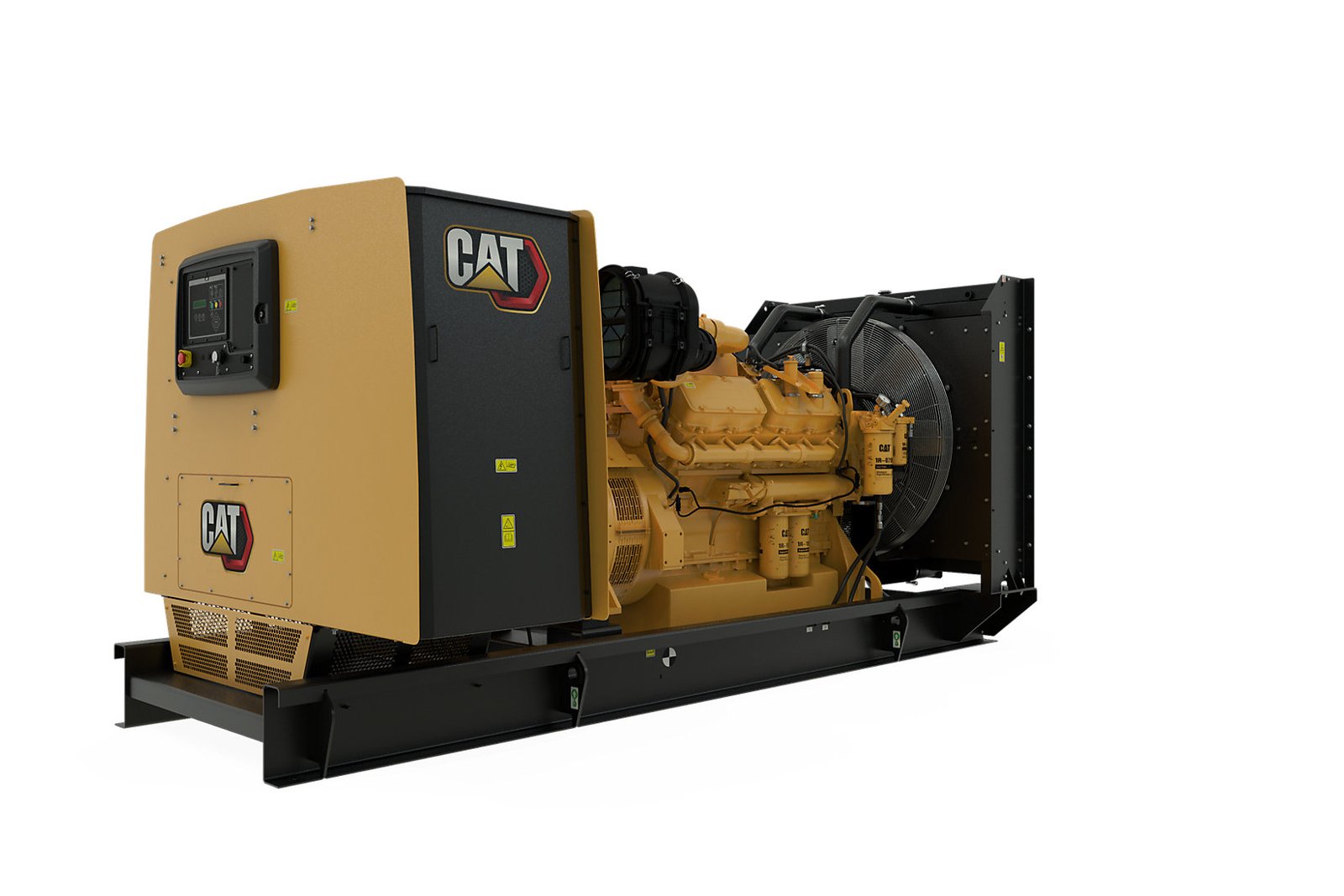

3412C (50 Hz) Diesel Generator Sets

Air Inlet System

• Air cleaner, single element canister type with service indicator

Control Panel

• EMCP 4.2B

• Customer data link (Modbus RTU)

• 2 Programmable relay outputs (Form C)

• Features include:

• Voltage adjust

• Failure to start (overcrank)

• Volts (L-L & L-N)

• Reverse power (kW) (32)

• Accessory module data link

• Over/under voltage (27 / 59)

• Speed adjust

• Low coolant temperature

• Oil pressure (psi, kPa or bar)

• Environmental sealed front face

• Generator temperature monitoring module

• DC volts

• Serial annunciator module data link

• Reverse reactive power (kVAr) (32RV)

• Amps (per phase & average)

• High coolant temperature

• 24 Volt DC operation

• Communications

• Power factor (per phase & average)

• Compatible with the following optional modules:

• Low coolant level

• Text alarm/event descriptions

• Digital I/O module

• 6 programmable digital inputs

• Low oil pressure

• Remote Serial annunciator

• Engine cycle crank

• Local annunciator

• Digital indication for:

• Over/under frequency (81 o/u)

• Generator phase sequence

• Emergency stop

• kVAr (per phase, average & percent)

• Run/auto/ stop/control

• Operating hours

• kVA (per phase, average & percent)

• Warning/shutdown with common LED indication of shutdowns for:

• Emergency stop pushbutton

• Frequency (Hz)

• coolant temperature

• Overspeed

• 4 programmable relay outputs (Form A)

• kW-hr (total)

• 2 Programmable digital outputs

• Remote CAN annunciator

• Overcurrent (50 / 51)

• kW (per phase, average & percent)

• RPM

• Programmable protective relaying functions:

Cooling System

• Radiator with guard (Sized for 50 degrees C)

• Coolant level shutdown

• Coolant drain line with valve, piped to edge of base

• Fan and belt guards

• Caterpillar extended life coolant

Exhaust System

• Stainless steel exhaust flex with ANSI style outlet flange, gasket, bolts and mating weld flange, shipped loose

Fuel System

• Primary and Secondary fuel filters

• Fuel priming pump

• Flexible fuel lines terminated on base

• Water seperator

Generator and Attachments

• 2:1 Volts/Hz

• Busbar termination

• 3-phase sensing

• Class H insulation

• Reactive droop

• VR6 voltage regulator

• SR4B self excited

• 12 Leads

• Class F temperature rise

Governing System

• Cat electronic governor

Lube System

• Oil drain line with valve, piped to edge of base

• Lubricating oil

• Oil filter

• Fumes disposal, piped to front of radiator

Mounting System

• Base, formed steel with linear vibration isolators between base and engine-generator

Starting / Charging System

• 45 amp Charging alternator

• Battery with rack, cables

• Fuel shutoff solenoid

• 24 volt starting motor

Air Inlet System

• Heavy duty air cleaners

• Dual element air cleaners

• Open element air cleaners

Circuit breakers

• 1600 Amp, 3 pole, Non-UL, 100% rated, 24 volt DC shunt trip

• 1250, 1600 Amp, 3 pole, IEC 100% rated, 24 volt DC shunt trip

Control Panel

• Generator temperature monitoring package

• EMCP 4.4

• First local annunicators

• Vandal proof panel door

• Remote custom annunicator

• EMCP 4.3

• Local discrete I/O package

• Common alarm/shutdown relay

• Ground fault relay

• Generator running VFC

Cooling System

• Radiator duct flange

• Jacket water heaters

European Certifications

• Eurasian Conformity (EAC) mark

Exhaust System

• Through wall installation kit

• Mufflers

• Manifold and turbocharger guards

• Elbow kit

Generator and Attachments

• Permanent magnet excitation (PMG)

• Space heater

• Digital voltage regulator

• Oversize and premium generators

Lube System

• Manual sump pump

Mounting System

• Fuel tank base (1200 ltr)

Special Tests / Reports

• PGS Test report @ 0.8 power factor

• PGS Test report @ 1.0 power factor

Starting / Charging

• Oversize batteries

• Battery chargers

• Battery disconnect switch

• Heavy duty starting system

Governing System

• Electronic load share
