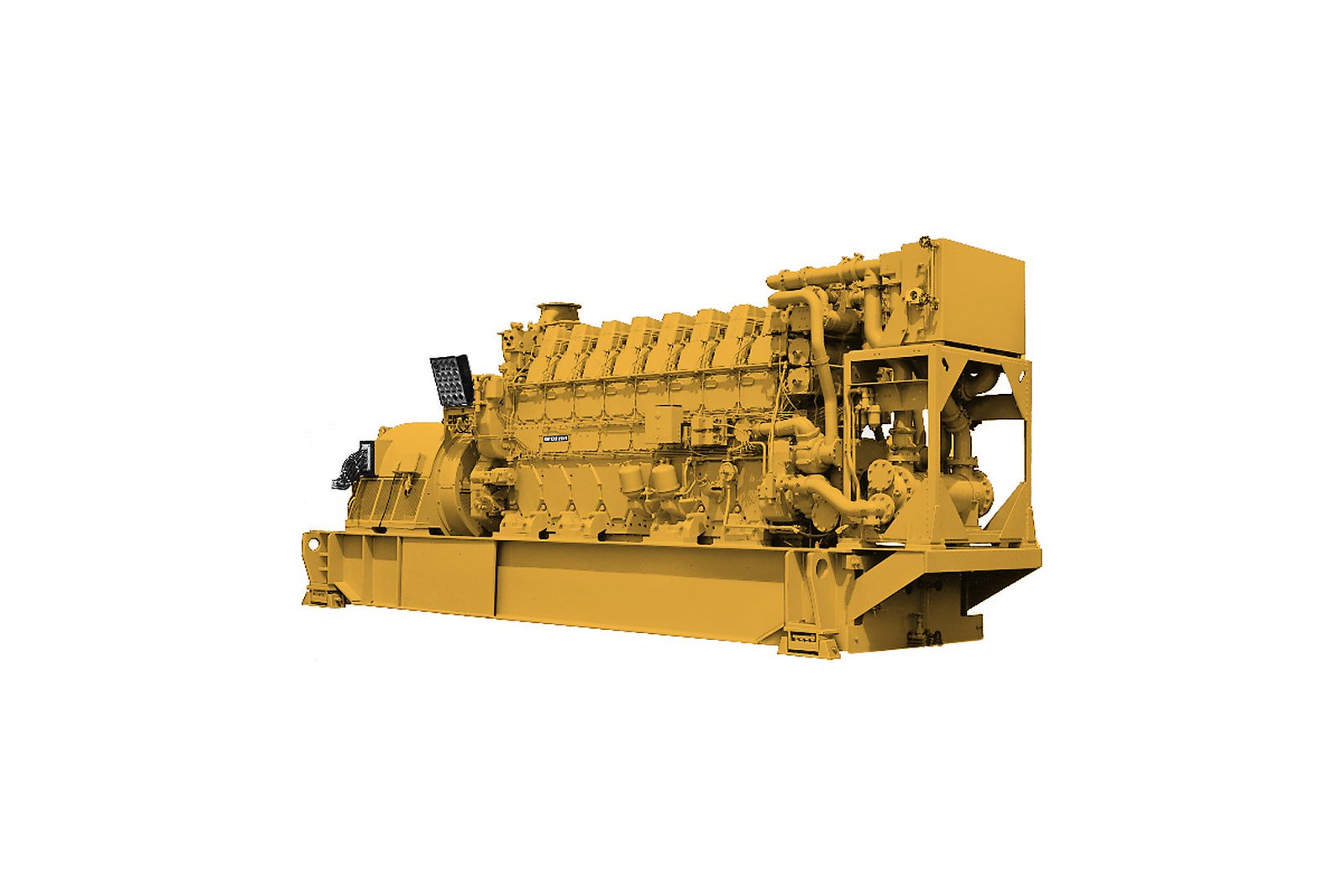

3608 (50 Hz) Diesel Generator Sets

Air Inlet System

• Breather, crankcase, top-mounted

• Aftercooler, fresh water, corrosion resistant coated (air side)

• Turbocharger, watercooled (750 rpm and HFO), engine oil lubricated

• Air inlet shutoff

Cooling System

• Water temperature regulator

• Jacket water thermostats

• Engine coolant water drains

Exhaust System

• 457 mm (18 in) Cat bolt pattern

• Includes adapter, flexible exhaust fitting

• Dry, gas tight, exhaust manifold

Fuel System

• Simplex or duplex

Generator System

• Custom generator per generator data sheet completed by dealer

Governor System

• UG Actuator

Lube System

• Service side engine mounted on cylinder block inspection covers

• Centrifugal oil filters with single shutoff

• Crankcase explosion relief valves

• Wet oil sump. Includes engine-driven main lubrication and oil pumps, oil lines and oil pan

• Oil filler and dipstick

• Oil pressure regulating valve

Mounting System

• Engine and generator mounting

• Damper, torsional vibration

Starting / Charging System

• Line group for single point custom connection

• Air silencer

• One motor, engine mounted at rear, on left side

• Vane type air starter

General:

• Paint, Caterpillar yellow

• Gear driven pumps: Fuel/oil/jacket water/Aftercooler/Oil cooler water

Air Inlet System

• Air cleaner louver assembly

• Air inlet adapter

• Heavy duty air cleaner

• Vertical support bracket

• Soot filter

• Boost control valve

Cooling System

• Expansion tank

• Auxiliary water pump

• Heating aids

• Cooling system aids

Exhaust System

• Flexible exhaust fittings

• Weld flange and related hardware

Fuel System

• Duplex primary fuel strainer

• Fuel priming pump

• Fuel system connections

Generator System

• Winding temperature detectors

• Anti-condensation space heaters

• Busbar connections

• 3 Phase, six Leads, WYE

• Class F insulation

Governor System

• Digital programmers

• 2301 A load share

• 723 Plus

• EGB actuator

• Electronic/actuators

• Battery backup/power supply

Lube System

• Oil pan drain valve

• Lube ANSI adapter (Emergency connection)

Mounting System

• Spring type vibration isolators

• Non-vertically restrained

• Vertically restrained

• Isolator

Starting / Charging System

• Pressure reducing valve

• Compressed air flex hose

General:

• Custom paint colors
