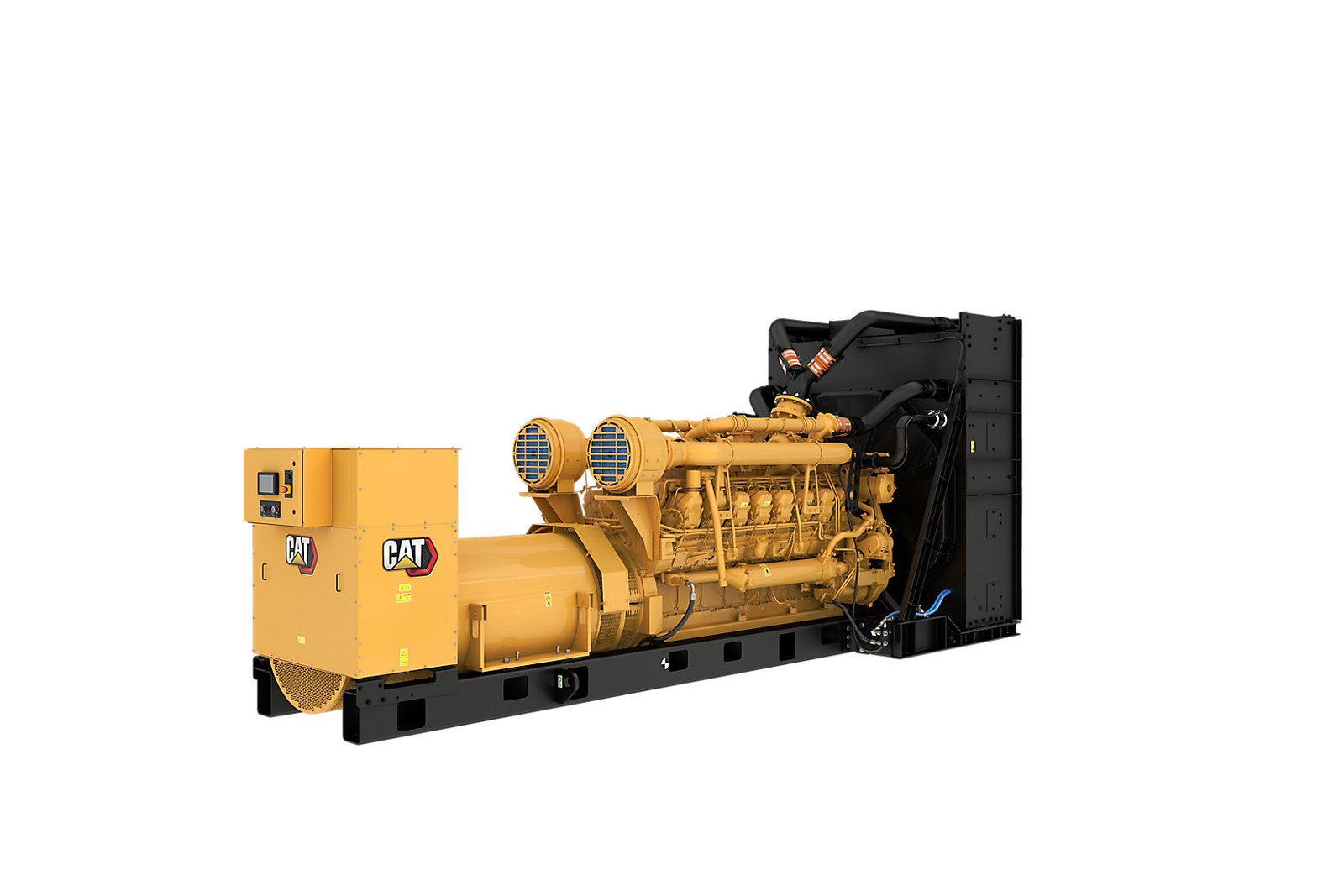

3516C (50 Hz) Diesel Generator Sets

Air Inlet

• Air cleaner

Cooling

• Package mounted radiator

Exhaust

• Exhaust flange outlet

Fuel

• Fuel priming pump

• Secondary fuel filters

• Primary fuel filter with integral water separator

Generator

• Matched to the performance and output characteristics of Cat engines

• IP23 Protection

Power Termination

• Busbar

Control Panel

• Cat ECS 100

General

• Paint - Caterpillar yellow except rails and radiators gloss black

Exhaust

• Exhaust mufflers

Generator

• Excitation: [ ] Permanent magnet excitation (PMG) Excited (PM) [ ] Internally Excited (IE)

• Anti-condensation heater

• Oversize and premium generators

Power Termination

• Circuit breakers, IEC compliant

• Circuit breakers, UL listed

Control Panels

• EMCP 4.4

• Digital I/O module

• Load share module

• Generator temperature monitoring & protection

• Remote monitoring software

Mounting

• Spring type vibration isolators

• Rubber anti-vibration mounts

• IBC isolators

Starting/Charging

• Jacket water heater

• Charging alternator

• Oversize batteries

• Battery chargers

• Heavy duty starting system

• Air starting motor with control and silencer

General

• UL 2200 package

• EU Certificate of Conformance (CE)

• Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007

• EEC Declaration of Conformity

• Integral & sub-base UL listed dual wall fuel tanks

• The following options are based on regional and product configuration:

• Automatic transfer switches (ATS)

• Enclosures: Sound attenuated, weather protective

• CSA Certification

• Integral & sub-base fuel tanks
