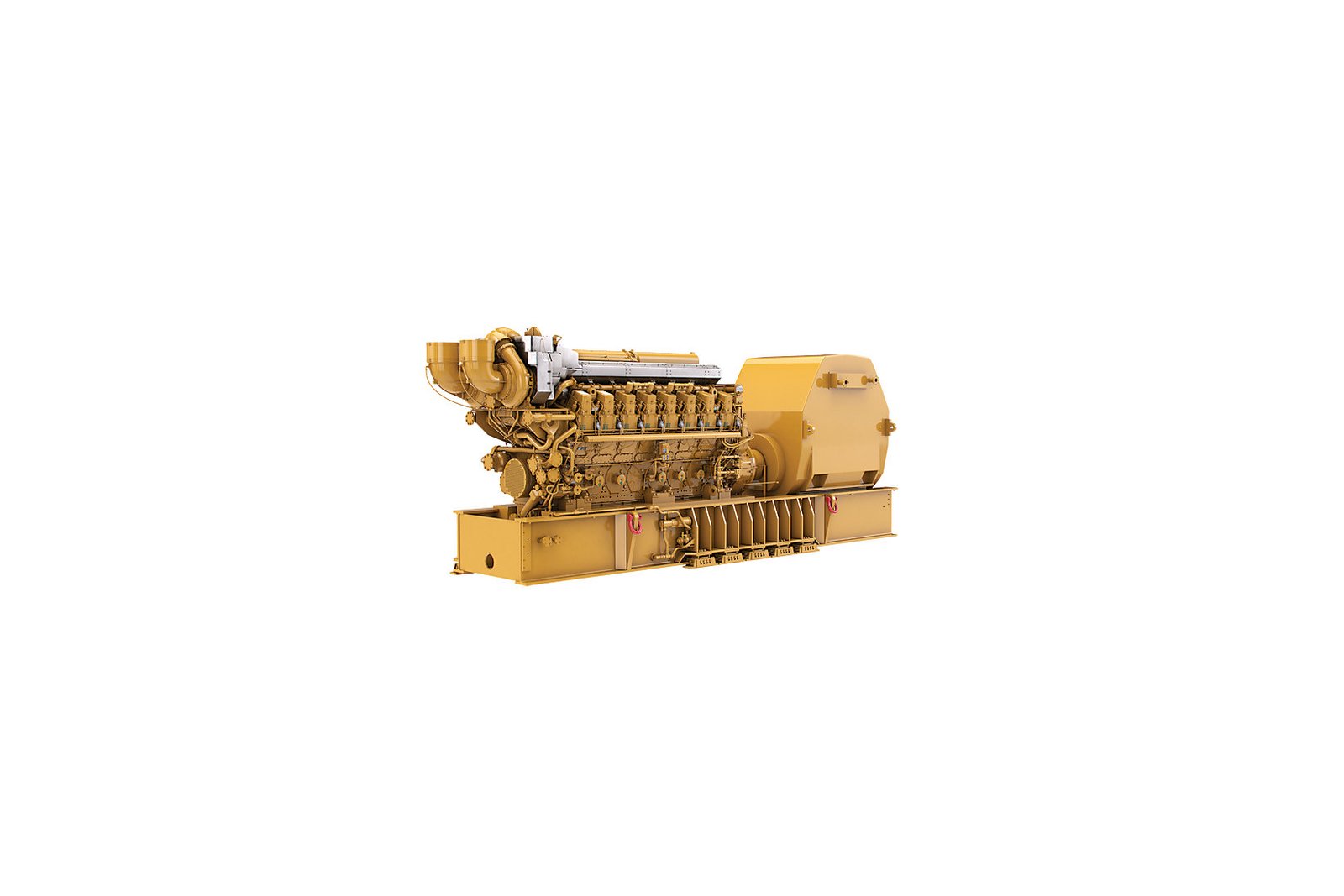

3616 (50 Hz) Diesel Generator Sets

Air Inlet System

• Turbocharger, watercooled, engine oil lubricated

• Air inlet shutoff

• Aftercooler, fresh water, corrosion resistant coated (air side)

• Air cleaner

• Breather, crankcase, top-mounted

Cooling System

• Front mounted turbos

• Three-bundle oil cooler

• Engine coolant water drains

• Water temperature regulator

• Jacket water thermostats

Exhaust System

• 457 mm (18 in) Cat bolt pattern

• Dry, gas tight, exhaust manifold

• Includes adapter, flexible exhaust fitting

Fuel System

• Simplex or duplex

Generator System

• Custom generator per generator data sheet completed by Dealer

Governor System

• UG Actuator

Lube System

• Oil pressure regulating valve

• Wet oil sump. Includes engine-driven main lubrication and oil pumps, oil lines and oil pan

• Crankcase explosion relief valves

• Oil filler and dipstick

• Service side engine mounted on cylinder block inspection covers

• Centrifugal oil filters with single shutoff

Mounting System

• Engine and generator mounting

• Damper, torsional vibration

Starting / Charging System

• Line group for single point custom connection

• Two motors, engine mounted at rear, on left side

• Vane type air starter

• Air silencer

General:

• Gear driven pumps: Fuel/oil/jacket water/aftercooler/Oil cooler water

• Paint, Caterpillar yellow

Air Inlet System

• Soot filter

• Air inlet adapter

• Heavy duty air cleaner

• Vertical support bracket

• Air cleaner louver assembly

• Boost control valve

Cooling System

• Expansion tank

• Auxiliary water pump

• Heating aids

• Cooling system aids

• Heat exchanger for single circuit

Exhaust System

• Weld flange and related hardware

• Flexible exhaust fittings

Fuel System

• Duplex primary fuel strainer

• Fuel priming pump

• Fuel system connections

Generator System

• Busbar connections

• Anti-condensation space heaters

• Class F insulation

• 3 Phase, six Leads, WYE

• Winding temperature detectors

Governor System

• 230 UA

• Battery backup/power supply

• Digital programmers

• EGB actuator

• Electronic/actuators

• 723 Plus

Lube System

• Lube ANSI adapter (Emergency connection)

• Oil pan drain valve

Mounting System

• Spring type vibration isolators

• Non-vertically restrained

• Vertically restrained

• Isolator

Starting / Charging System

• Turbine type air starters

• Redundant air starters

• Pressure reducing valve

• Compressed air flex hose

General:

• Custom paint colors
